Professional Indoor Scoreboard for Basketball, Handball and Competition Sports Halls

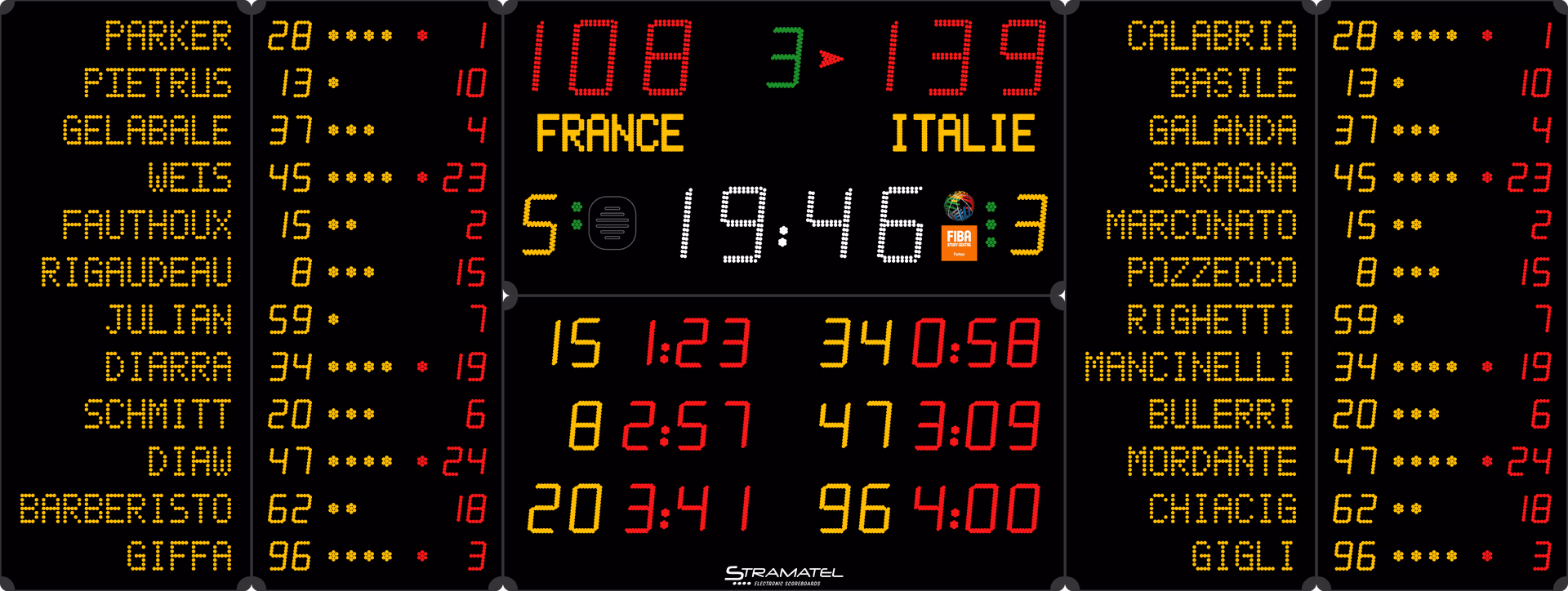

The Stramatel 452 MB 3123-123 indoor multisport scoreboard is a high-performance professional LED scoreboard built for schools, universities, academies, leisure centres and large indoor sports venues. Designed for multi-sport competition environments, this advanced 6-module system supports 14 fully programmed sports and delivers excellent readability up to 110 metres.
The Stramatel 452 MB 3123-123 indoor multisport scoreboard is especially suited for basketball and handball, offering individual player names, player numbers, individual points, individual fouls, excluded player display and 2 penalty timers per team. It also supports full set scoring for volleyball, tennis and table tennis.
Its large-format professional display makes it ideal for high-level competition sports halls and professional indoor facilities.
Sports Supported
The Stramatel 452 MB 3123-123 indoor multisport scoreboard is suitable for:
- Basketball
- Handball
- Volleyball
- Tennis
- Table Tennis
- Badminton
- Futsal
- Rink Hockey
- Inline Hockey
- Ice Hockey
- Unihockey / Floorball
- Netball
- Boxing
- Free Mode for custom sports
This flexibility makes it ideal for large multi-use sports halls managing several sports within one venue.
Standard Composition
Each system includes:
- 1 scoreboard made of 6 modules
- 2 control consoles
- 1 start/stop timer console
- 1 PC keyboard
- 2 carrying cases for control consoles
- 3 mains cables
- Junction box and transmission cables (for cable-controlled version)
- Operating and installation instructions
Technical Specification
Scoreboard Details
- Use: Indoor
- Transmission: Cable as standard, radio transmission (868 MHz) optional
- Readability: 110m
- Viewing angle: Greater than 160°
- Dimensions: 5300 x 2000 x 90mm
- Weight: 170kg
- Power supply: 230V / 50–60Hz
- Power consumption: 610 VA
- Protection: Unbreakable matt polycarbonate front face (DIN 18032-3)
- Integrated horn: 116dB at 1 metre
- Mains cable supplied: 3 x 20m
Display Features
Main Display Functions
- Score: 2 x 3 red LED digits (25cm)
- Period: 1 green LED digit (20cm)
- Team names: 20 yellow LED alphanumerical characters (12cm)
- Moving messages / sponsor display: 1000 characters
- Ball possession: 2 red LED arrows
- Timer / Rest period: 4 white LED digits (25cm) with blinking points
- Team fouls or sets: 2 yellow LED digits (20cm)
- Time out / exclusions: 2 x 3 green LED points
- Day time display when scoreboard is not in use
Advanced Player Display Modules
- Excluded player display for handball
- Last penalised player display for basketball
- Set results for volleyball, tennis and table tennis
- Player names display
- Player number display
- Individual fouls display
- Individual points display
Additional Display Format
- 6 x 2 yellow LED digits (16cm)
- 6 x 3 red LED digits (16cm) with blinking points
- 10 yellow LED alphanumerical characters per player
- 2 red LED digits for individual points per player
Control Console Features
The Stramatel 452 MB 3123-123 indoor multisport scoreboard includes:
- 2 LCD control consoles with 2 lines of 20 characters
- Main console for match control
- Individual fouls and points control console
- Start/stop timer console
- PC keyboard for team names, player names and moving messages
- Charger with up to 16 hours autonomy
- DIN connection plugs between consoles
- USB port for updates and keyboard connection
- 14 pre-programmed sports disciplines
- Free Mode for custom sports such as wrestling or Pelota
- Multilingual programme support
Optional Extras Available
Additional upgrade options include:
- TV Interface (RS485)
- Sound Interface
- DCF or GPS Antenna
- Cable Set
- Precision Time Interface
- Pair of Shot Clocks
- LED Strips behind basketball backboards
- MPA Ball Possession Indicator
These upgrades allow the system to be tailored to your sports hall and competition level.
Supply and Installation by SES
Sports Equipment Supplies provides full UK-wide supply and installation for the Stramatel 452 MB 3123-123 indoor multisport scoreboard.
Our service includes:
- Site consultation
- Product specification
- Equipment supply
- Professional installation
- Testing and commissioning
- User guidance and handover
Whether you require a professional basketball scoreboard, advanced handball scoreboard or a complete sports hall scoreboard upgrade, we ensure the correct solution is supplied and professionally installed.
Please contact us with your project requirements and a dedicated account manager will be in touch to discuss your specification, understand your project in detail and provide a full supply and installation quotation.
