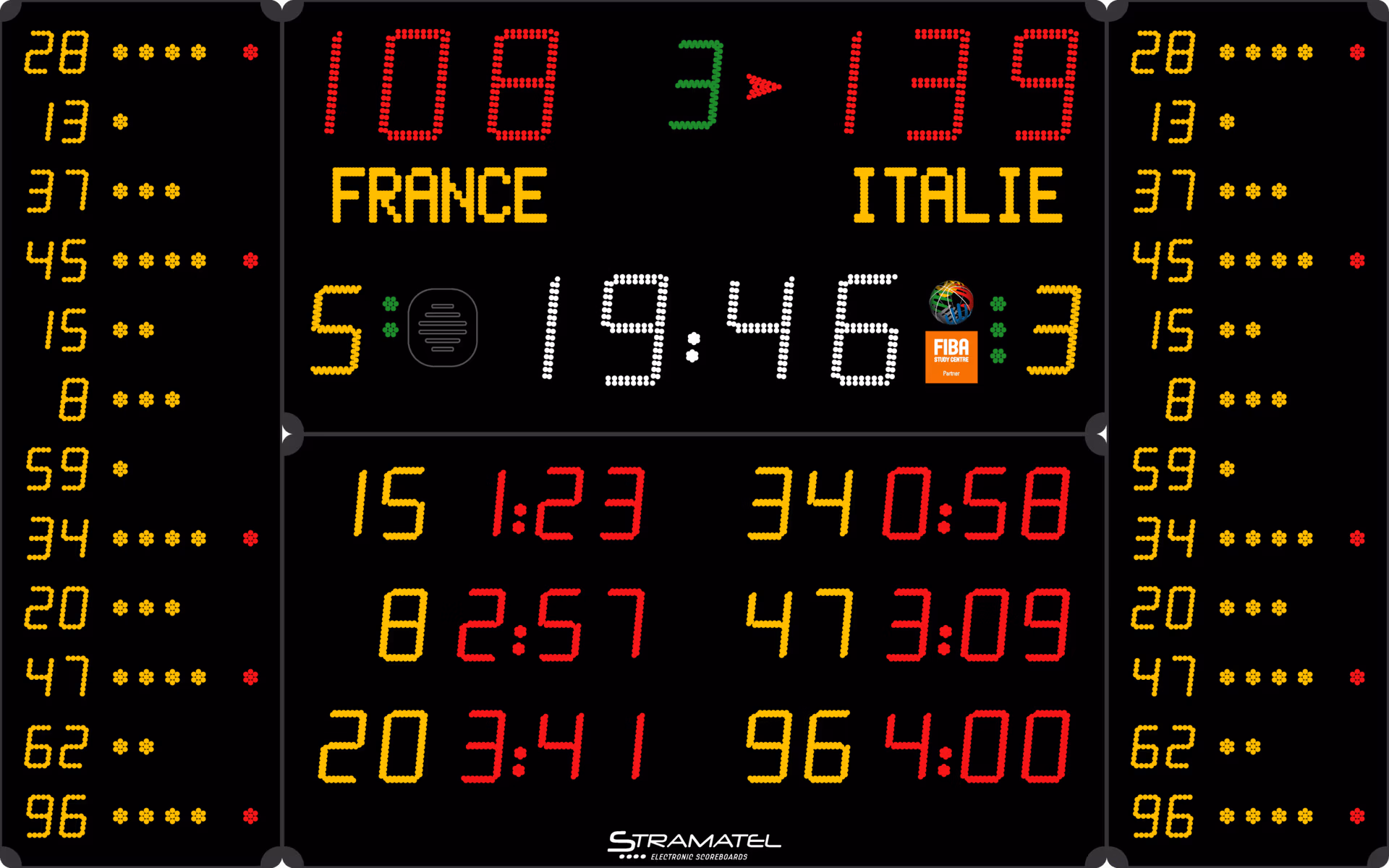

Stramatel 452 MB 3123-2 Indoor Multisport Scoreboard

Professional Indoor Scoreboard for Basketball, Handball and Volleyball

The Stramatel 452 MB 3123-2 indoor multisport scoreboard is a high-performance indoor LED scoreboard built for schools, academies, universities, leisure centres and professional sports halls. Designed for multi-sport venues, this advanced 4-module system supports 14 fully programmed sports and offers excellent readability up to 110 metres.

The Stramatel 452 MB 3123-2 indoor multisport scoreboard is particularly suited for basketball and handball, offering individual foul display, programmable player numbers, team names, 2 penalty timers per team and excluded player number display. It also supports full set scoring for volleyball, tennis and table tennis.

Its large-format professional display makes it ideal for demanding indoor sports environments and competition-level venues.

Sports Supported

The Stramatel 452 MB 3123-2 indoor multisport scoreboard is suitable for:

• Basketball
• Handball
• Volleyball
• Tennis
• Table Tennis
• Badminton
• Futsal
• Rink Hockey
• Inline Hockey
• Ice Hockey
• Unihockey / Floorball
• Netball
• Boxing
• Free Mode for custom sports

This flexibility makes it ideal for schools, universities and leisure centres managing multiple sports within one facility.

Standard Composition

Each system includes:

• 1 scoreboard made of 4 modules
• 2 control consoles
• 1 start/stop timer console
• 1 PC keyboard
• 2 carrying cases for control consoles
• 3 mains cables
• Junction box and transmission cables (for cable-controlled version)
• Operating and installation instructions

Smartphone not included.

Technical Specification

Scoreboard Details

• Use: Indoor
• Transmission: Radio (868 MHz) or cable
• Readability: 110m
• Viewing angle: Greater than 160°
• Dimensions: 3200 x 2000 x 90mm
• Weight: 102kg
• Power supply: 230V / 50–60Hz
• Power consumption: 343 VA
• Protection: Unbreakable matt polycarbonate front face (DIN 18032-3)
• Integrated horn: 116dB at 1 metre
• Mains cable supplied: 3 x 20m

Display Features

Main Module

• Score: 2 x 3 red LED digits (25cm)
• Period: 1 green LED digit (20cm)
• Team names: 20 yellow LED alphanumerical characters (12cm)
• Moving messages / sponsor display: 1000 characters
• Ball possession: 2 red LED arrows
• Timer / Rest period: 4 white LED digits (25cm) with blinking points
• Team fouls or sets: 2 yellow LED digits (20cm)
• Time out / exclusions: 2 x 3 green LED points
• Day time display when scoreboard is not in use

Bottom Module

• Excluded player display for handball
• Last penalised player display for basketball
• Set results for volleyball, tennis and table tennis
• 6 x 2 yellow LED digits (16cm)
• 6 x 3 red LED digits (16cm) with blinking points

Lateral Modules

• Individual fouls display for basketball
• 5 yellow LED points + 1 red LED point per player
• Player number display: 2 yellow LED digits (9cm) per player

Control Console Features

The Stramatel 452 MB 3123-2 indoor multisport scoreboard includes:

• 2 LCD control consoles with 2 lines of 20 characters
• Main console for match control
• Individual fouls control console
• Start/stop timer console
• PC keyboard for team names and moving messages
• Charger with up to 16 hours autonomy
• DIN connection plugs between consoles
• USB port for updates and keyboard connection
• 14 pre-programmed sports disciplines
• Free Mode for sports like wrestling or Pelota
• Multilingual programme support

Optional Extras Available

Additional upgrade options include:

• TV Interface (RS485)
• Sound Interface
• DCF or GPS Antenna
• Cable Set
• Precision Time Interface
• Pair of Shot Clocks
• LED Strips behind basketball backboards
• MPA Ball Possession Indicator

These upgrades allow the system to be tailored to your sports hall and competition level.

Supply and Installation by SES

Sports Equipment Supplies provides full UK-wide supply and installation for the Stramatel 452 MB 3123-2 indoor multisport scoreboard.

Our service includes:

• Site consultation
• Product specification
• Equipment supply
• Professional installation
• Testing and commissioning
• User guidance and handover

Whether you require a new basketball scoreboard, handball scoreboard or a complete indoor sports hall scoreboard upgrade, we ensure the correct solution is supplied and professionally installed.

Please contact us with your project requirements and a dedicated account manager will be in touch to discuss your specification, understand your project in detail and provide a full supply and installation quotation.
