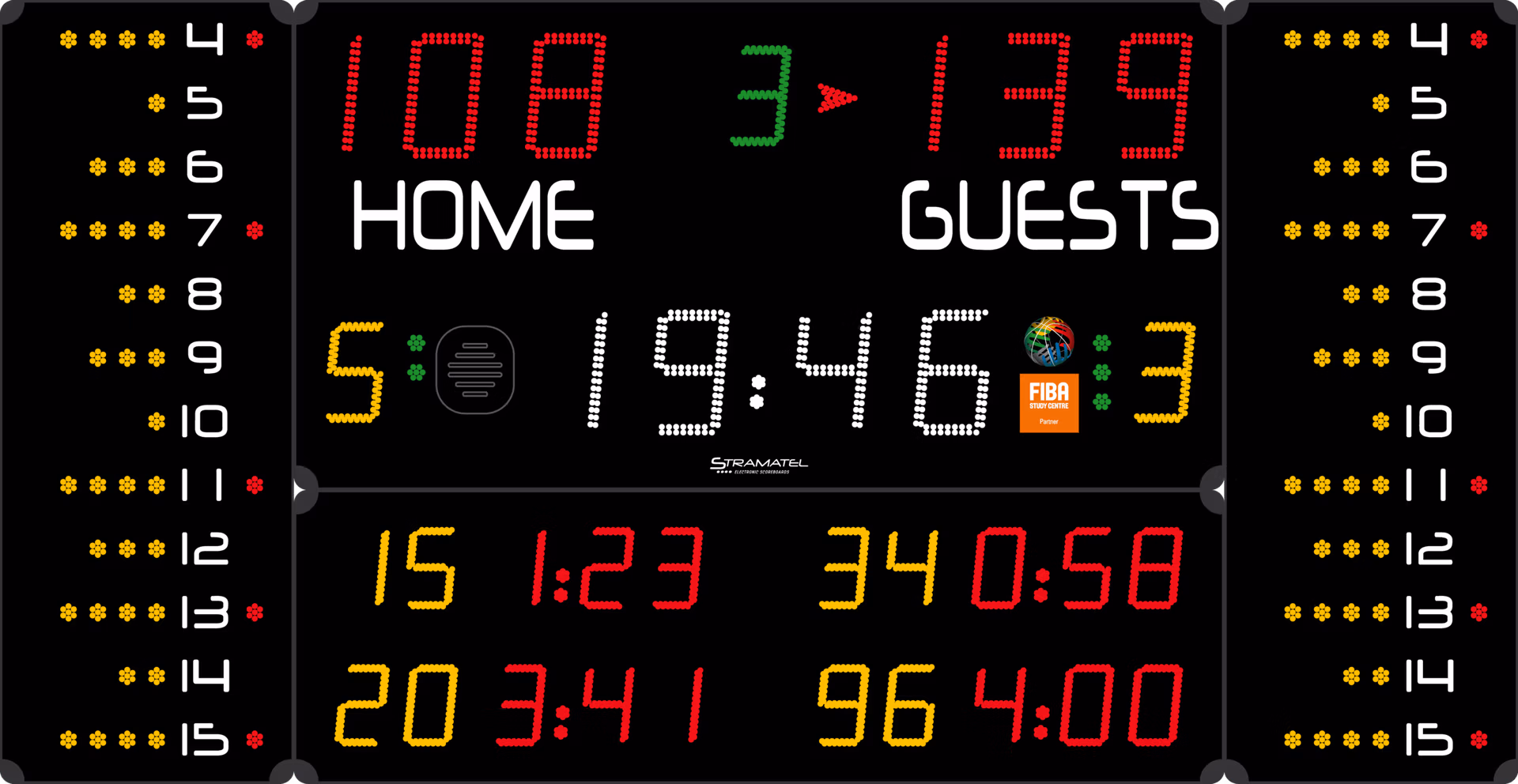

Stramatel Multisport Scoreboard
452 MB 3023

£5,638.45 Ex VAT

SES are pleased to offer free shipping on all orders over £120.00.

MULTISPORT Range PRO

BASKET BALL – HANDBALL – VOLLEYBALL – TENNIS -TABLE TENNIS – BADMINTON – FUTSAL – RINK HOCKEY IN LINE HOCKEY- ICE HOCKEY – UNIHOCKEY / FLOORBALL – NETBALL – BOXING – FREE MODE



Composition

1 Scoreboard made of 4 modules

2 Control consoles (Android compatible),1 start/stop timer console

2 Carrying cases for control consoles

1 Mains cable

Junction box and transmission cables (for cable controlled version)

Operating and installation instructions

(Smartphone not included)



Description

Use: Indoor

Transmission: Radio (868 MHz) or cable

Readability: 110m, angle >160°

Dimensions: 3100 x 1600 x 90mm

Weight: 80 kg

Power supply: 230V / 50-60Hz

Power consumed: 209 VA

Protection: Unbreakable mat polycarbonate front face (DIN 18032-3)

Horn: 1x integrated horn, 116dB at 1m

Mains cable (supplied): 25 m – Type: 230V, 3G, 0.75 mm²

Cable controlled: For cable controlled models or radio controlled models with cable set:

Junction Box + 50 m transmission cable (scoreboard/junction box) –

Type: phone cable 2 pairs 6/10th + 10 m transmission cable DIN/DIN (junction

box/console)



Display Functions

Main module:

Score: 2 x 3 red LED digits (25 cm)

Period: 1 green LED digit (20 cm)

Ball possession: 2 red LED arrows

Timer/Rest period: 4 white LED digits (25 cm) + blinking points

Team fouls (BB)/sets (VB, T, TT…): 2 yellow LED digits (20 cm)

Time out (BB, HB, VB) / No. of exclusions (HB): 2 x 3 green LED points

Day Time: When the scoreboard is not in use

Bottom module:

Excluded player (HB) / last penalized player (BB) / set result for home team (VB, T, TT…): 4 x 2 yellow LED digits (16 cm)

Penalty timer (HB)/Time-out timer (BB) / No. of individual fouls for last penalized player(BB)/ set result for guest team (VB, T, TT…): 4 x 3 red LED digits (16 cm) + blinking points

Lateral modules:

Individual fouls (BB) 2 modules: 5 yellow LED points + 1 red LED point per player (12)



Control Consoles

2 consoles: (340 x 175 x 60 mm) with LCD screen with 2 lanes of 20 characters (9mm high)

  • Main console: management of the main functions
  • Control console for individual fouls

1 Start/stop timer console: 145 x 150 x 40 mm for timer, time out, horn

1 charger (radio): Hold the consoles in charge when there are not in use. (Autonomy max 16 h) Connection plugs: DIN between the consoles

USB Port: For program update or connect PC keyboard

Programme: 14 sport disciplines + “Free mode” to create your own sport discipline or for additional sports (wrestling, Pelota…)

Multilingual Programme

Stramatel Multisport APP : possibility to control main functions of the scoreboards with an android smartphone / tablet and to share match information by sms, emails…

(Free Application on Google Play)



Options

TV Interface (RS 485): Data transmission for TV broadcasting

Sound Interface: Connection with sport hall sound system – Horn sound amplifier

DCF or GPS Antenna: For accurate time synchronisation

Cable set: Cable mode for radio controlled scoreboard

Pair of shot-clocks: Attack timer with or without main time repeater

Led Strips: Electric light to be installed behind the backboard connected with Shot clocks

MPA: Ball possession indicator

If your require a higher standard scoreboard then I recommend the Multisport scoreboard BR 452 Ms 7120.
