Favero Side statistics panels
FC12A1

SES are pleased to offer free shipping on all products.

SKU: Art.30499-30 Categories: ,

FC12A1

(Art.30499-30)

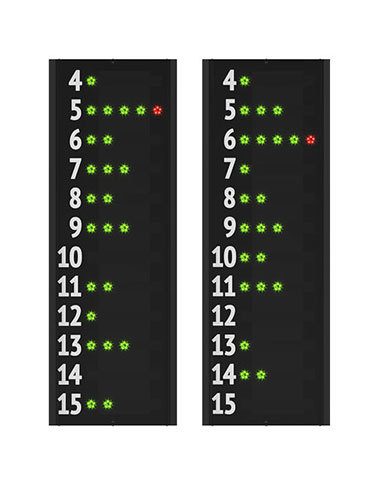

Pair of statistics panels (side displays) showing the player No. and fouls of 12 players on the 2 teams.

Ideal for basketball.

These panels are installed on the sides of the FC series central scoreboard.
They can be purchased together with the central scoreboard or afterwards.


Functions displayed for each player (12 players per team):

Player number: [4-15] not programmable fixed digits, 8.3cm high.
Fouls: [4 green indicator lights + 1 red], diameter 2.5cm.


Technical characteristics for both panels:

  • Dimensions and weight: 50x143x9cm, 11.5kg.
  • Distance and readability angle: 30m (100ft), 150 degrees.
  • No front protection cover required. Complies with DIN 18032-3 and UNI 9554: 1989 standard on “resistance to damage from balls”. You save on the cost of a protective cover, visibility is completely preserved, and access to the scoreboard is easy. YouTube video
  • FIBA approved (info, FIBA certificate). It can be used together with other models of FC series.
  • Easy to install. Technical instructions in 5 languages. Provided with brackets for wall mounting.
  • Supplied with cable to connect to the main electronic scoreboard.
  • Robust container made from powder-coated aluminum. Front panel made from anti-glare polycarbonate.
  • Electronic display boards are easily accessible from the front, built with high-quality, wide-angle SMD LEDs with an average life of 100,000 hours!
  • Control Console (not included). Controlled via the Control Console (see ACCESSORIES) of the electronic scoreboard above it.
  • Guarantee: 2 years (info).


ACCESSORIES (not included):

  • Scoreboard Control Console: Art.308-01 Console-700
    User-friendly multisport touchscreen console for FC, FS, FW, TM, FOS series electronic scoreboards. Wireless or wired communication. 14-hour average life internal battery.
