Electrically Operated Roll Up divider net

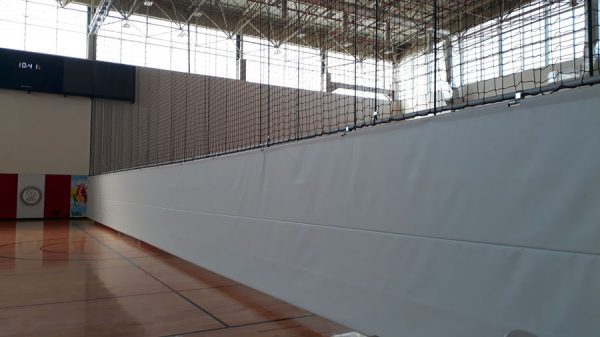

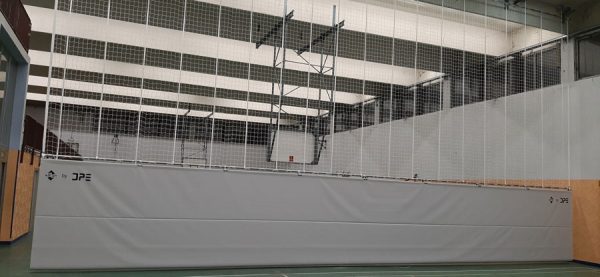

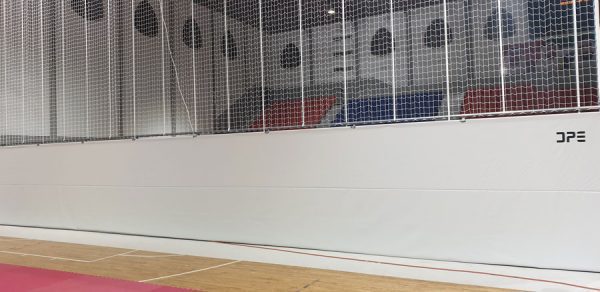

Do you need a combination of materials to divide one area in two or more? Combined dividing curtain is the right choice for you! This system offers partly sound absorption with double layer PVC curtain and partly netting so the light can go through. A nice solution for combining your needs.

SES are pleased to offer free shipping on all orders over £120.00.

SKU: S07602 Categories: , ,



Do you need a combination of materials to divide one area in two or more? Roll Up divider net Sports Hall is the right choice for you! This system offers partly sound absorption with double layer PVC curtain and partly netting so the light can go through. A nice solution for combining your needs.

  • Combined dividing curtains offers combination of materials to divide one area in two or more.
  • Offers partly sound absorption with double layer PVC curtain and partly netting so the light can go through.
  • The basic system includes all the needed material and segments with carrier structure (aluminium truss) included.
  • The usage of the whole system is very easy and available in various options.
  • Complete system is provided with tested and certified materials.

Combined dividing curtain is made from:

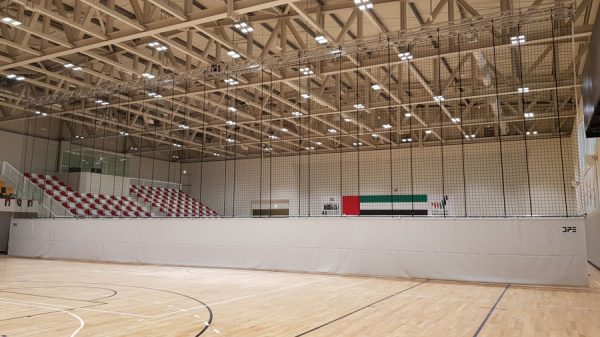

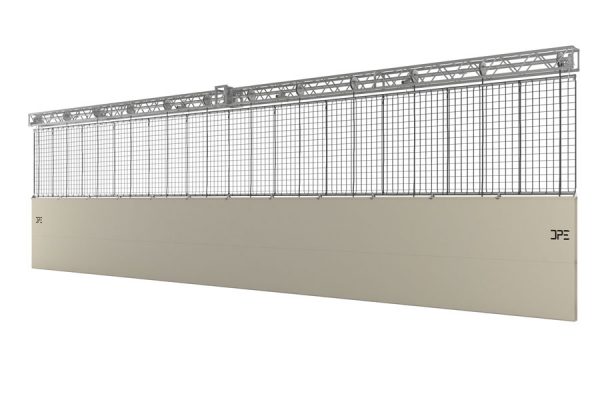

  • CARIER STRUCTURE – ALUMINIUM TRUSS The aluminium truss 40 x 40cm is produced exclusively in the twist resistant version and with a thicker aluminium profile compared to the other structures. This aluminium truss is specially designed for dividing curtains. It allows to cover areas of small and large dimensions giving the chance to apply loads and keeping a perfect behaviour of the structure. In the aluminium truss the driving shaft with drive mechanism (engine, axle, bearings, supports, safety brakes) is incorporated with fixation elements.
  • MOTOR / ENGINE Special engines are used to operate the dividing curtain. The engine is driven directly from drive reducer shaft. Prevention of curtain falling back requires a safety brake. The engine consists of: worm gear, interchangeable output-shaft, emergency manual operator, integrated limit switches and electrical motor.
  • SAFETY BRAKE Function of safety brake: Locking catch and locking wheel (triggering mechanism) trigger the braking action if the maximum operation speed is exceeded. The special tooth geometry of the ratchet wheel reduces reaction time and thus the braking distance. The structure is only subject to extremely low braking moments.
  • DRIVING SHAFT WITH WINDING SYSTEM All the parts of the driving shaft with winding system are incorporated within the carrier structure.
  • PVC Our special PVC combines the latest weave technology with the usual high coating quality to make a material with a “unique” surface and outstanding technical properties. Material properties: Flame retardant, Optimum rolling characteristics, High wind stability, Bend resistant
  • NET Various types of net, Flame retardant, UV resistant

Vantaggi – Advantages

  • All system components (engine, driving axle, safety brakes, pulleys…) are incorporated into ALU truss construction.
  • No need of additional roof brackets, subconstructions etc. to be prepared. ALU Truss can be fixed at any place to roof construction, roof brackets.
  • Complete system is preassembled at our warehouse.
  • Short time of final assembling of local installation team. On your request we can also provide you our installation team.
  • Possibility of packing the complete system in wooden box for air transportation, truck transportation, container transportation etc.
  • Materials can be selected accordingly to the clients wishes (colour, gr/m2, etc.).
  • A complete 3-D visualization of the project can be made
  • More than 30 years of experience of installations all around the world.

Certificazioni – Certifications

  • Certificate of compliance
  • CE certificate
  • TÜV certificate
  • EN Standards (Eurocode)

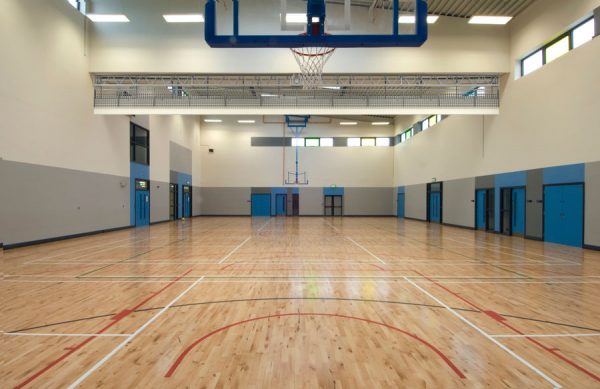

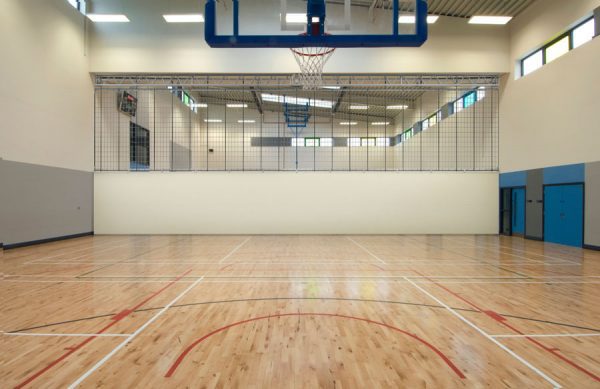

Gym divider curtains are designed to divide playground or field in one or more different sections, enabling simultaneous use of sporting venues for different activities. According to specific customer’s needs and sport venue’s requirements, dividing curtains can be single PVC sheets, double PVC sheets, combined solutions with PVC for 250 cm from the ground and upper part made of mesh as well as panels entirely made of mesh. Curtain handling can be performed by ceiling by rolling with electric motor on structure to be customized or manual lateral sliding. Sport System’s gym separator panels are made of synthetic fireproof fabrics in line with modern reference standards. Sport System offers diversified catalog of gym divider curtains and separator panels for gyms featuring high quality materials and solutions to divide sport venue in a discreet and functional way. Sport System applies best practices in the field and modern standards in sporting venue equipment to organize gym space in a functional and unrivalled way. Essential range of dividing curtains and panels from Sport System offers an optimal blend of quality, functionality and affordability. Separator panel provides one more solution for gym zoning using colored PVC sheet mounted on a painted and galvanized steel support structure with a telescopic height adjustment system. Separating panels are mobile using wheels and brake system featuring length of 300 cm and a maximum height of 220 cm. Essential range of separator panels and gym divider curtains from Sport System proves that quality matters in every detail of sport venue. Contact Sport System to get detailed information about products for gym zoning in gyms using information request form – the customer service will get in touch as soon as possible.

For more products on Sports Hall visit this page
